Description

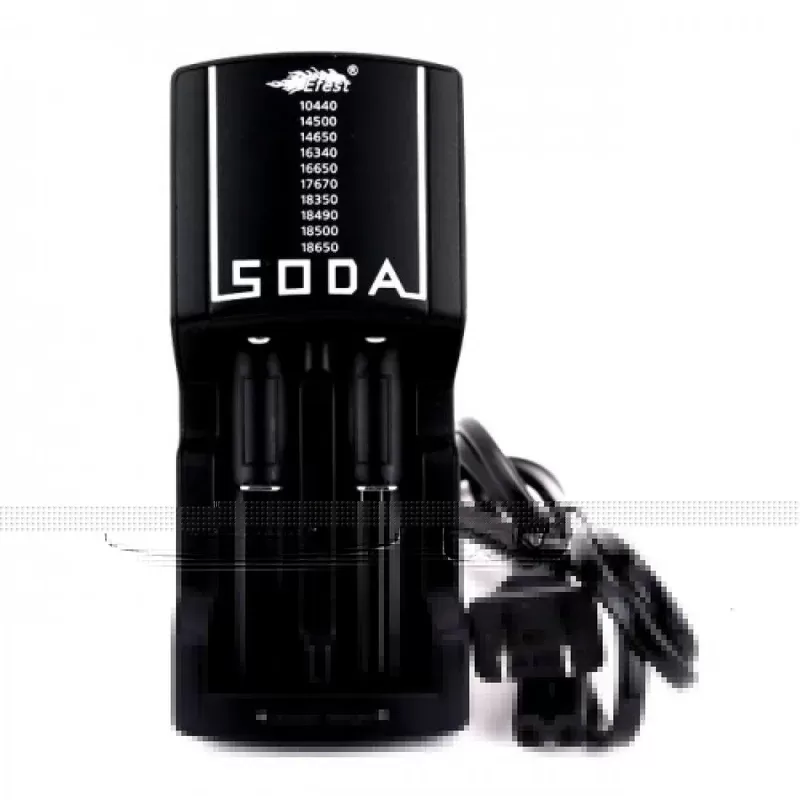

The Efest Soda charger is capable of charging two batteries simultaneously. Both slots monitor and charge independently. The charger can be adjusted to rapid or normal charging. Compatible with the following lithium rechargeable batteries: 10440 / 14500 / 14650 / 16340 / 16650 / 17670 / 18350 / 18490 / 18500 / 18650. Main features/technical spec: Dual charging with independent charging slots and separate LED indicator lights
Compatible with rechargeable 3.6V/3.7V Li-ion and Li-Mn batteries
Charging mode 1 = 0.5A – 10440 / 14500 / 14650 / 16340 / 16650 / 17650 / 17670 / 18350 / 18490 / 18500
Charging mode 2 = 1.0A – 18650 / 17650 / 18700 / 17670 / 18670
Various in-built safety protections including over-voltage, over-discharging, short-circuit and reverse polarity protection
Auto-stop when charged
Auto-recharges when voltage lower than 3.9V
Input power 1 = AC 100~240V 50/60Hz
Input power 2 = 12V 1A
Output power = 4.2V
0.5 CC current 500m A±10%
1A CC current 1000m A±10%
Auto cut-off current 4.2±0.05V
CV cut-off current 10% max current
Standby current 30mA
TC current (battery voltage 2-2.9V) 10% max current
Activation current (battery voltage) 10mA~100mA
Maximum output current 1A
Battery outpout cut-off voltage 3.0±0.05V
Auto recharge voltage 4.09±0.1V
Storage temperature -40 ¢ €š ¬ž †‚¬ „¢~+70 ¢ €š ¬ž †‚¬ „¢
Operational temperature 0 ¢ €š ¬ž †‚¬ „¢~40 ¢ €š ¬ž †‚¬ „¢
Complies with European CE and RoHS standards
More info on Efest’s website -Efest Soda charger Caution: Take the batteries out of the charger after the power has been turned off
Do NOT leave batteries charging unattended/overnight
Do not make any changes to the charger, charger accessories or connectors, as this could cause an electrical shortage, fire or over-heating during charging
Ensure you only use the charger in accordance with the manufacturer’s instructions
Use only rechargeable batteries or PCB batteries. Other types of batteries may cause personal injury
