Description

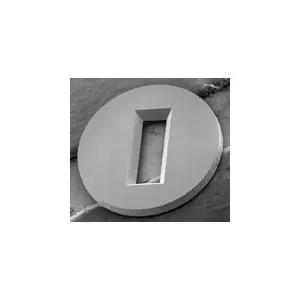

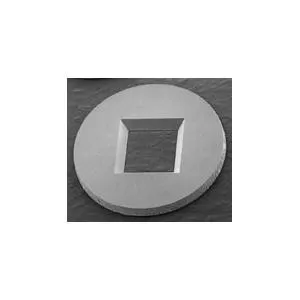

DESCRIPTION The PELCO® Silicon Aperture Frames are 3mm disk type frames with a thickness of 200µm and square or rectangular apertures. They are made with the same clean state-of -the-art manufacturing techniques as the PELCO® Silicon Nitride Support Films. The Silicon Nitride has been removed and leaves a silicon frame. They are perfectly round shaped 3mm frame featuring the Easygrip™ edge for easy handling. No broken edges and free of debris often associated with other manufacturing processes. Offered with three sizes of openings: 0.5 x 0.5, 1.0 x 1.0 and 1.5 x 0.5mm. Fully compatible will standard 3mm TEM holders. Support frame to attach TEM lamellas made with FIB, DualBeam® or CrossBeam® instruments for subsequent TEM imaging
Easy access due to wide angle opening
Protects TEM Lamella During Transport Window angle toward the back is 35.26 degrees, which results in aperture dimensions: Product No.
Aperture size
Area
Back side opening 21540-10
0.5 x 0.5mm
0.25mm2 0.78 x 0.78mm 21541-10
1.0 x 1.0mm
1.00mm2 1.28 x 1.28mm 21542-10
1.5 x 0.5mm
0.75mm2 1.78 x 0.78mm MSDS (367KB PDF) PELCO® Silicon Aperture Frame (no support film) 0.5 x 0.5mm, pkg/10
PELCO® Silicon Aperture Frame (no support film) 1.0 x 1.0mm, pkg/10
PELCO® Silicon Aperture Frame (no support film) 1.5 x 0.5mm, pkg/10
