Description

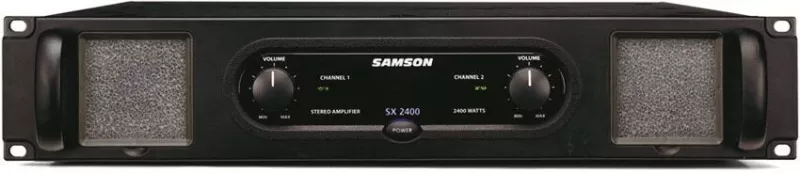

The Samson SX2400 is a professional rack-mount power amplifier designed for live sound or installation audio applications, offering an output power of 500W per channel at 8 ohms. The amplifier can operate in stereo, parallel, or bridged-mono mode according to your needs and offers combination XLR/TRS input jacks and 5-way binding posts and Speakon output connectors. Front-panel volume knobs let you make level adjustments easily.The SX2400 has a solid offering of internal protection, including circuitry to protect against overheating, short circuits, and DC. The unit is fan-cooled for increased reliability. The SX2400 has an open, natural sound quality with a wide frequency range and very low distortion. All of these features inside a 2U steel housing make the SX2400 a great option for your amplification needs.Features 2U rack space stereo power amplifier
Rugged all-steel chassis
Three-mode stereo/parallel/bridged-mono operation with dedicated rear-panel switch
Forced-air, vari-speed dual temperature-sensitive fans cooling for reliable, consistent performance
Toroidal low-profile, high current transformer power supply
Protection relay circuitry with dedicated LEDs includes thermal overload protection, On/Off muting, and clip protection
Unique bipolar circuit design minimizes or nulls DC output at idling stage, which conserves energy and prevents speaker damage
XLR/TRS combo input connectors, 5-way binding post and Speakon outputs Power Rating 500W @ 8Ω Stereo (per channel)
750W @ 4Ω Stereo (per channel)
1500W @ 8Ω Bridged-Mono Damping Factor: 350 (400Hz)
Input Sensitivity: 1.24V (4 dBu)
Input Impedance 15 k ohms Unbalanced
30 k ohms Balanced Gain: 34dB
Frequency Response 20Hz – 20kHz (0/-0.5dB @ 8 ohms, 1W)
5Hz – 60kHz (0/-3dB @ 8 ohms, 1W) Signal-to-Noise Ratio: 104dB (20Hz – 20kHz)
Total Harmonic Distortion (THD): 0.01% or Less
Input Connections: 2 x XLR/1/4″ Combo Jacks
Output Connectors 2 x 5-way Binding Posts
2 x Speakon Connectors Controls Front Panel 2 x Volume Control Knobs
1 x Power Switch Controls (Rear) 1 x 3-Way Bridge/Stereo/Parallel Switch
1 x 15 Amp Circuit Breaker Switch Indicators 1 x Blue Power On LED
1 x Amber Protection LED
2 x Green Signal LEDs
2 x Red Peak LEDs Cooling: Dual Vairable-Speed Fans
Power Consumption 7A @ 1/8 Power, 4 ohms
14.5A @ 1/3 Power, 4 ohms
26A @ Rated Power, 4 ohms (Max) Power Requirements: 100/115/220/230/240 VAC, 50/60 Hz
Dimensions: 19 x 3.5 x 16″ (483 x 89 x 408mm)
Weight: 40 lbs (18 kg)
Specialties
Protection Circuitry
Removable Front Panel Fan Filters for Simplified Cleaning
Stereo/Parallel/Bridged Operating Modes
