Description
What Can We Expect From the SX Mini Vi Class Pod Kit?

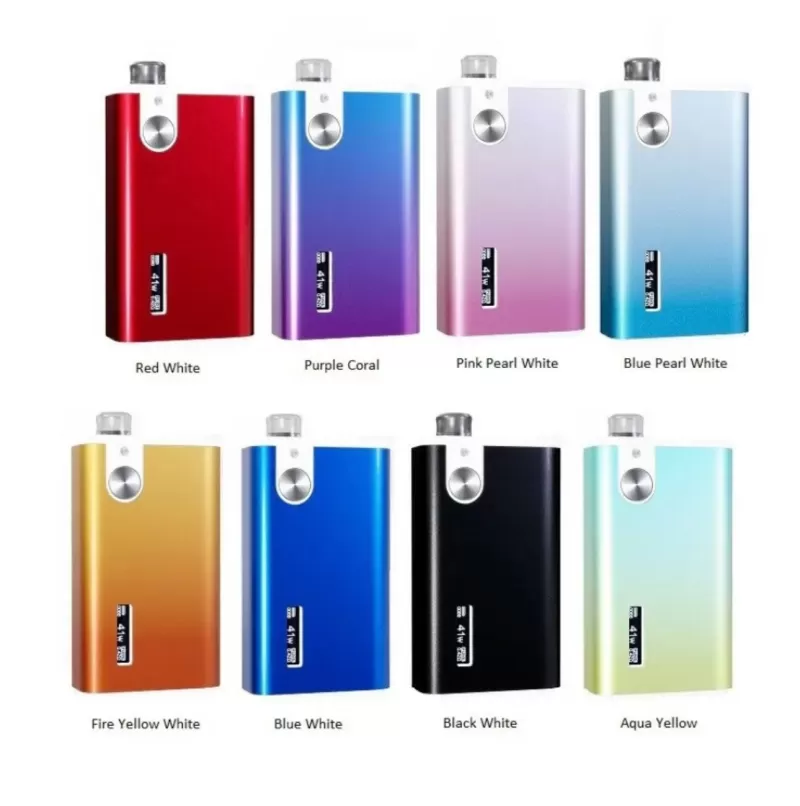

The Vi Class uses a single 18650 battery and utilises the latest SX505J Yihi chipset. It very much takes on the style of a Billet Box device. Instead of a shorter Boro tank we get a cartridge (or pod) with a non-replaceable 0.4ohm sealed mesh coil. But that’s just the start of the story. Not only are there proprietary pods, the kit is compatible with tanks such as the BP Mods TMD Dot, Veepon Tita RBA and Yachtvape Pandora DOT RBA. How cool is that? It’s all made possible with an adaptor kit (sold separately). It literally bridges the gap in height with those tanks and uses a plate for connection with the battery section. The SX Mini Vi Class is available in 8 colour schemes. Pick from Pink Pearl White, Fire Yellow White, Blue Pearl White, Blue White, Purple Coral White, Red White, Aqua Yellow White or Black White. Kit Contents

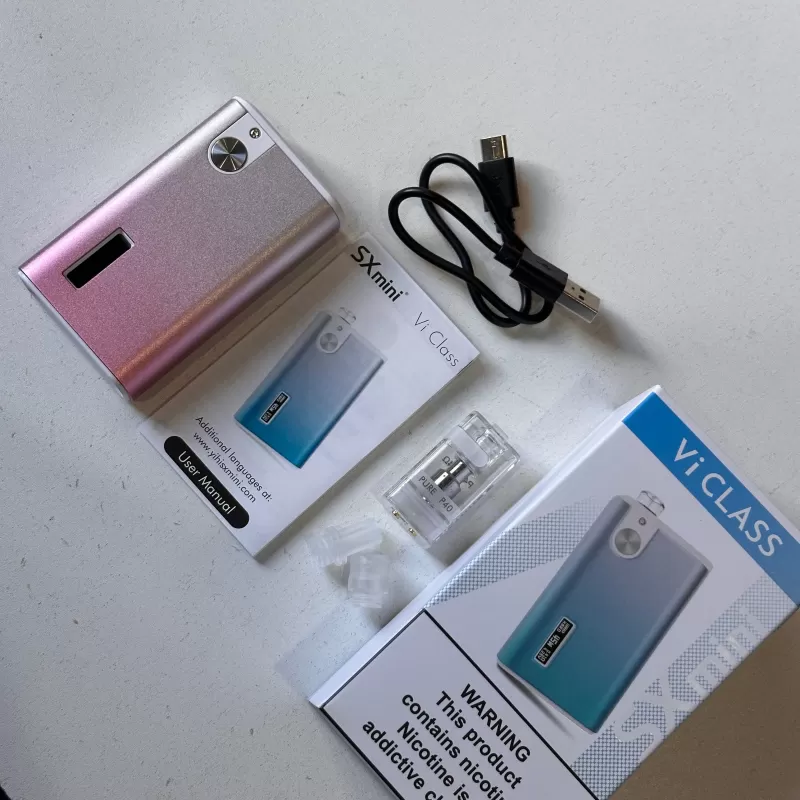

The device sits comfortably on a foam cut out inside the slip case. The accessories are packed beneath a cardboard tray. Vi Class Device
Cartridge / Pod (0.4ohm fixed mesh coil)
1 x MTL mouthpiece 1 x DTL mouthpiece
Type C USB charging cable
User manual
Warranty card SX Mini Vi Class Pod Kit Specifications
Mod Dimensions: 82.2 x 48 x 22mm
Weight: 62.2g
Material: Aluminium Alloy, plastic
Chip: Yihi SX505J
User modes: VW, TC, Pure, Curve
Wattage: 1-60W
Voltage: 0-8V
Resistance range: 0.15 – 3.0ohm
Max charge: 5V/1A
Battery: Single 18650 (not included)
Charging: Type C USB
Replaceable outer sleeve Cartridge Dimensions: 36 x 20mm
Material: PCTG
Capacity: 4ml
Sealed coil: P40 0.4ohm SS316L mesh
Drip tip: Mouth to lung and Direct lung types included
Filling: Side fill
Adjustable airflow slider on pod base How To Operate the Vi Class Pod Kit
NB: The device does not automatically switch on once a battery is installed. The adjustment buttons are located on the inner section with the outer shell removed. Press the fire button five times to turn the device on
Press the fire button three times to lock or unlock the device
While the device is on, press the fire button five times to enter mode select screen
Use the adjustment buttons to select ‘mode’ and press the fire button once
Choose between Watts and Pure mode by pressing the fire button once In variable wattage mode use the adjustment buttons to increase or decrease power. Holding the button down will speed up the process. Once the maximum of 60W is reached the device reads ‘Max Output’. While in wattage mode, pressing the fire button rapidly five times will bring up other options. You’re now able to access temperature controlmode (between C or F) as well as returning to Pure mode.
