Description
DESCRIPTION

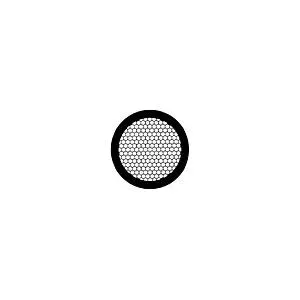

SIZE SPECIFICATIONS Veco Hexagonal, 100 mesh, Pitch 250µm; Hole Width 200µm; Bar Width 50µm Veco Hexagonal, 200 mesh, Pitch 125µm; Hole Width 85µm; Bar Width 40µm Veco Hexagonal, 200 mesh, 3.05mm O.D., Nickel, 100/vial Veco TEM Grids for Transmission Electron Microscopy The Veco grids are the most rigid of all mesh grids and offer superior strength while handling. These 3.05mm (0.12″) OD grids are manufactured by a precision electro plating process and have a thickness of 20µm. These grids have a shiny and matt side. Veco grids are available in different styles with square, thin/thick bar and hexagonal, mesh, holes and slots. Materials are Cu, Ni and Au. Packaging for the Cu and Ni grids is 100/vial and for Au grids 25/vial. Veco Grid Size Specifictions Square Mesh
Pitch µm
Hole µm
Bar µm 100
250
200
50 150
167
117
50 200
125
85
40 300
83
45
38 400
63
30
33 Hexagonal Mesh 100
250
200
50 200
125
85
40
