Description

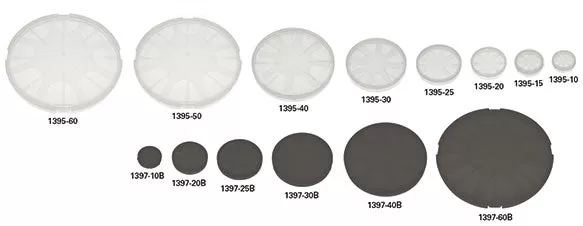

DESCRIPTION Natural or black conductive polypropylene material These high-quality wafer carrier trays are specifically designed for the storage, transport, and handling of semiconductor wafers, glass wafers, or other delicate flat objects. Made from either natural or conductive black polypropylene material and available in sizes from 1″ to 6″ with maximum grip, minimum contact, and minimum pressure. The wafer or disc carriers have a conical base to support the wafers at the edges only. The wafers are held in place and secured by a spider spring and locking cap. Wafer Carrier components include: -Base -Lid -Spider ring (pressure retention, edges, or center) Outside Dimensions Product Number Wafer Size Outside Dimensions 1395-10, 1397-10B 1″ (25mm) ø33 x 10mm 1395-15 1.5″ (38mm) ø48 x 10mm 1395-20, 1397-20B 2″ (50mm) ø60 x 11mm 1395-25, 1397-25B 2.5″ (63mm) ø75 x 11mm 1395-30, 1397-30B 3″ (75mm) ø84 x 11mm 1395-40, 1397-40B 4″ (100mm) ø110 x 11mm 1395-50 5″ (130mm) ø138 x 18mm 1395-60, 1397-60B 6″ (150mm) ø160 x 18mm Round, Natural Polypropylene Wafer Carriers 1″ to 6″ 1395-10
Wafer Carrier Tray for 1″ (25mm) Single Wafer, Natural Polypropylene
pkg/10 1395-15
Wafer Carrier Tray for 1.5″ (38mm) Single Wafer, Natural Polypropylene
pkg/10 1395-20
Wafer Carrier Tray for 2″ (50mm) Single Wafer, Natural Polypropylene
pkg/10 1395-25
Wafer Carrier Tray for 2.5″ (63mm) Single Wafer, Natural Polypropylene
pkg/10 1395-30
Wafer Carrier Tray for 3″ (75mm) Single Wafer, Natural Polypropylene
pkg/10 1395-40
Wafer Carrier Tray for 4″ (100mm) Single Wafer, Natural Polypropylene
pkg/10 1395-50
Wafer Carrier Tray for 5″ (130mm) Single Wafer, Natural Polypropylene
pkg/10 1395-60
Wafer Carrier Tray for 6″ (150mm) Single Wafer, Natural Polypropylene
pkg/10 1397-10B
Wafer Carrier Tray for 1″ (25mm) Single Wafer, Conductive Black Polypropylene
pkg/5 1397-20B
Wafer Carrier Tray for 2″ (50mm) Single Wafer, Conductive Black Polypropylene
pkg/5 1397-25B
Wafer Carrier Tray for 2.5″ (60mm) Single Wafer, Conductive Black Polypropylene
pkg/5 1397-30B
Wafer Carrier Tray for 3″ (75mm) Single Wafer, Conductive Black Polypropylene
pkg/5 1397-40B
Wafer Carrier Tray for 4″ (100mm) Single Wafer, Conductive Black Polypropylene
pkg/5 1397-60B
Wafer Carrier Tray for 6″ (150mm) Single Wafer, Conductive Black Polypropylene pkg/5
